Description

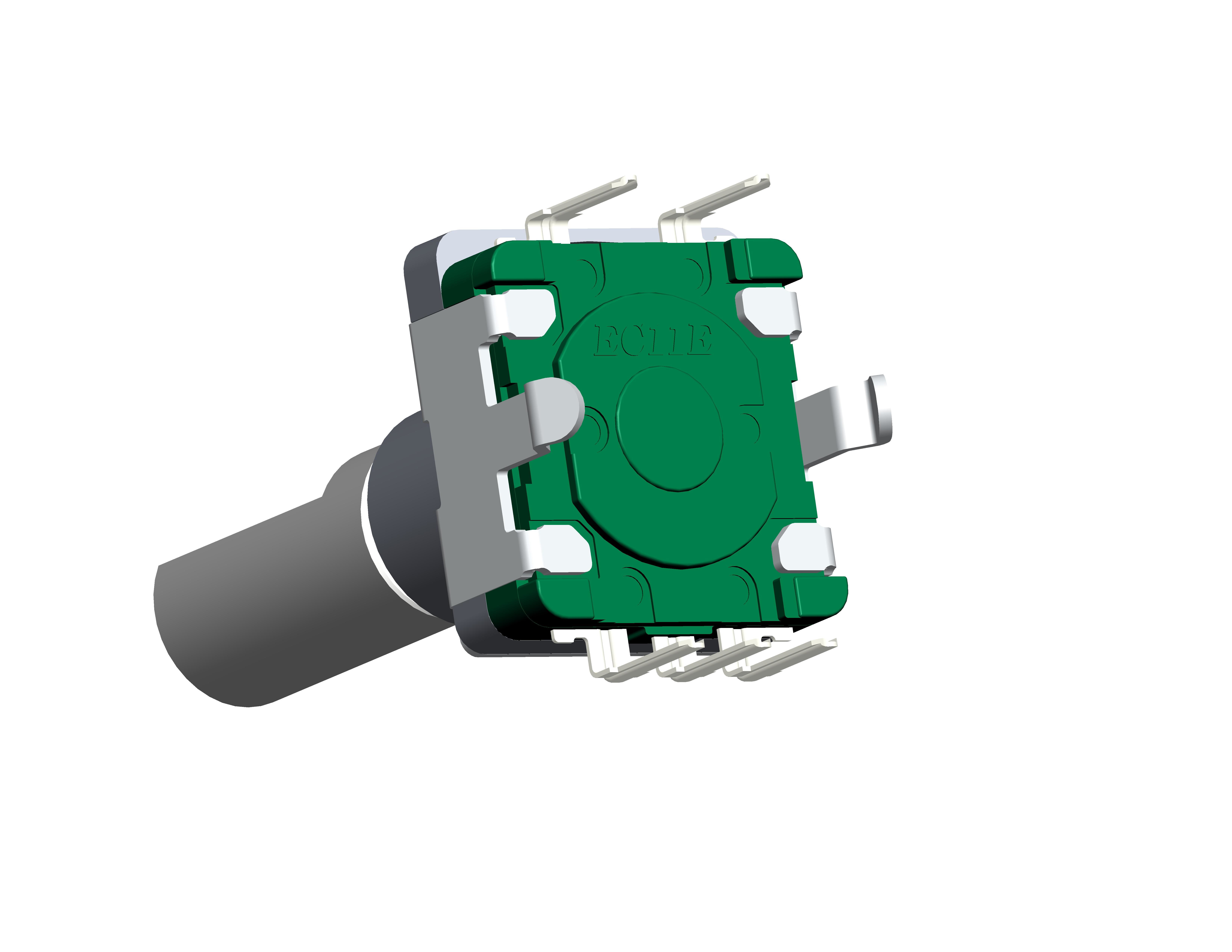

Self return switch is not a real toggle encoder but for adjusting frequency output up and down so would like something that returns to neutral position.
Specification
| Mechanical characteristics |
| Stopper strength | 3kgf.max |
| Rotational torque: | 20~200gf.cm |
| push-pull strength: | 8Kgf.max |
| Rotational stopper strength : | 3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Detent: | N/A |
| Vibration: | 10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent | N/A |
| Insulation resistance : | 100mΩ min.250V DC |
| Voltage proof: | 300V AC for 1 minute |
| Environmental performance |
| Cold: | -40ºC±2ºC for 96h |
| Dry heat: | 85ºC±2ºC for 96h |
| Damp heat: | 40±2ºC, 90 to 95%RH for 96H |
| Switch Performance |
| Rated power: | 0.1A 5V DC |
| Switch Torque: | 500± 200gf.cm max |
| Switch Travel: | 0.5± 0.3 |
| Circuit number: | PUSH |
| Voltage proof: | 300V AC for 1 minute |
| Operating life without load: | 100,000 cycles 100mΩ max |
| Operating life with load: | 100,000 cycles 200mΩ max |
| Initial contact resistance: | 100mΩ max |
| Insulation resistance : | 100mΩ min.250V DC |
Features
1.Highly reliable performance sealed design encoder .
2. Push switch with 0.5mm travel ,1.5mm travel available.
3. Shaft length and shape can be adjusted.
4. Vertical mount
5. Compliant with RoHS
6. Small Volume
Application
The self return switch is normally used to control panel for machines or audio equipment with menu sellection functions.
Our Factory
Dongguan SANNI Electronics Technology Co., Ltd. factory covers 1,2000 square meters facility with 180+ employees, have more than 10 years of experiences in manufacture and design of potentiometer, encoder, switch .... We have professinal and good technical and sales teams to serve your needs.
Our Services
1. Offer free samples
2. Offer 1 year warranty
3. OEM/ODM service available to meet all your needs
4. 24 hours online service to reply your inquiries
5. Strong R&D team for technical support
FAQ
1 Q: Can I get samples from you?
A: Yes, we can provide free samples, please contact us freely and tell us your needs.
2 Q: Can you provide technical support?
A: Yes, we have more than 10 years of research and development in the electronic industry. If you need technical support in the purchase process, please feel free to contact us.
3 Q: Do you accept customize service?
A: Yes, customization is acceptable, please contact our sales staffs for details.
